Is blog post me hum jaanenge transistor kaise kaam karta hai aur iske prakar ke baare me.
Agar aap electronics, Arduino, PCB design ya automation seekh rahe ho, to transistor aapke liye ek basic aur powerful component hai. Bahut log transistor ko tough samajh lete hain, lekin actually ye ek smart switch jaisa hi hota hai. Is post me hum discuss karenge ki transistor kaise kaam karta hai.
Is blog post me hum ekdam simple language me samjhenge:
1️⃣Transistor kya hota hai ?
2️⃣NPN aur PNP transistor kaise kaam karte hain ?
3️⃣Base resistor kyun lagaya jata hai ?
4️⃣Aur ek 5v signal se ek 12v LED ya bulb bhi control karke dikhaunga
🤔Transistor kya hota hai?
Transistor ek electronic device hai jo:
Switch ki tarah ON/OFF kaam karta hai

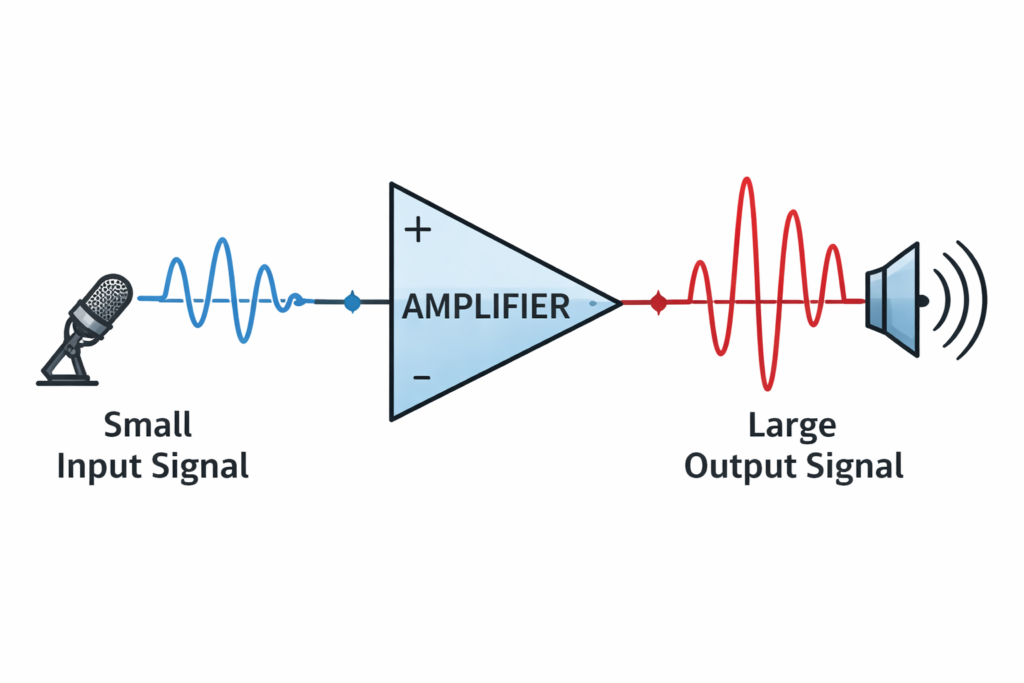

Ya amplifier ki tarah signal ko bada karta hai
👉 Simple words me:
Chhota signal = bada kaam
Manual switch me aap haath se button dabate ho,
lekin transistor me signal ya voltage hi button ka kaam karta hai.

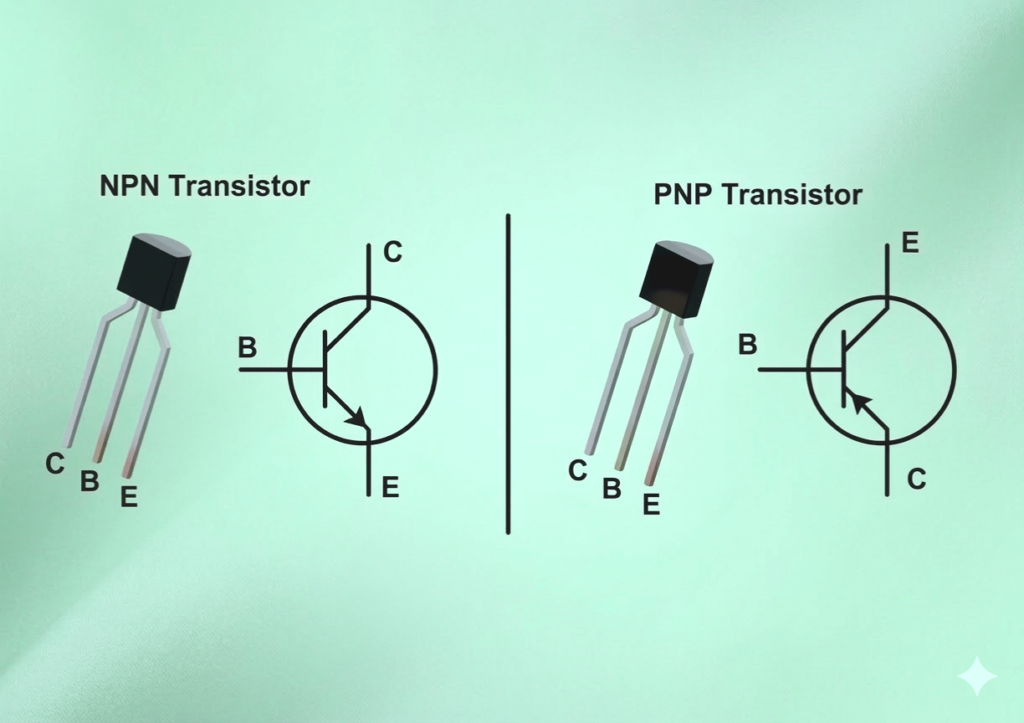

🧠 Transistor ke 3 terminals (pins)
Har BJT transistor me 3 pin hoti hain:
- Base (B) – control pin
- Collector (C) – power aane ka raasta
- Emitter (E) – power jaane ka raasta
📌 Base order deta hai, Collector aur Emitter us order ko follow karte hain.

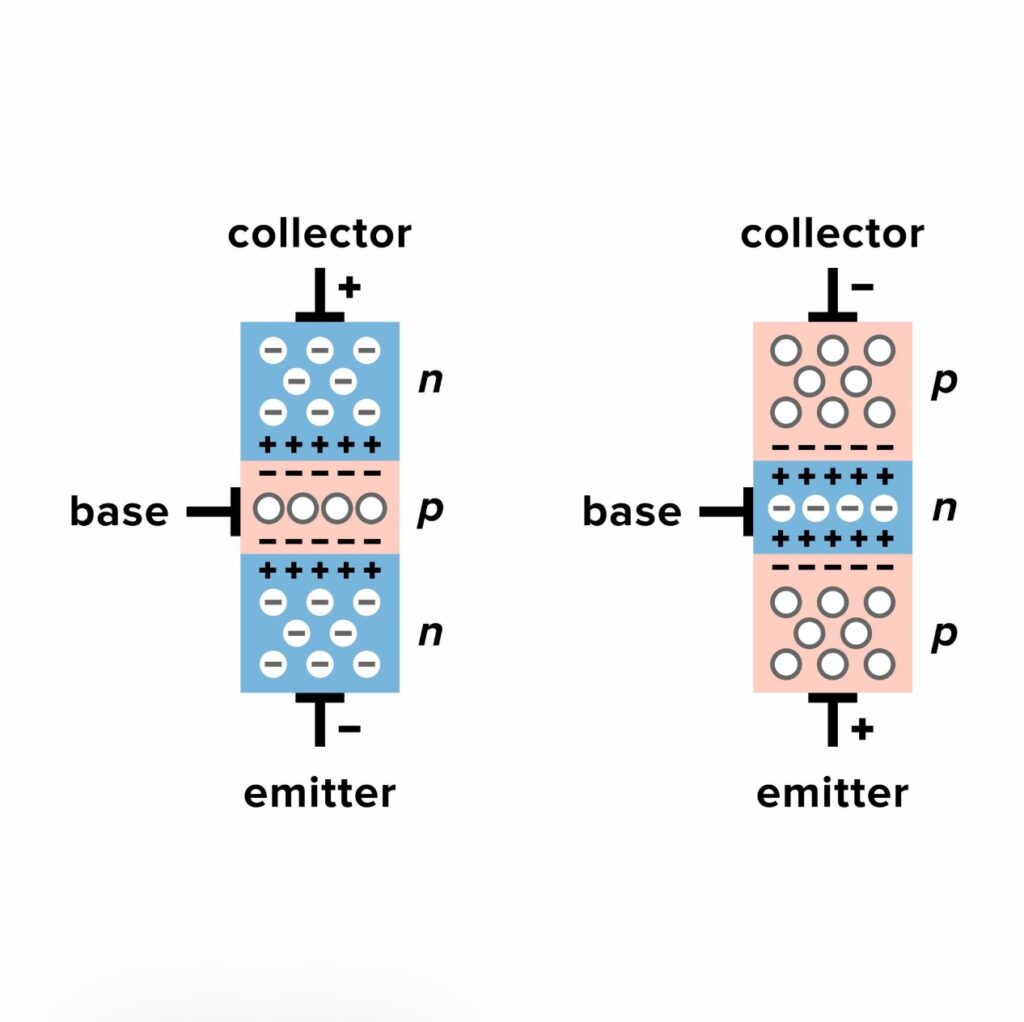

🔵 NPN Transistor kaise kaam karta hai?
NPN transistor sabse zyada use hone wala transistor hai even main apne project main NPN transistor hi use karta hu 🙂.
NPN ka simple rule:
Base pe positive voltage (+) do → transistor ON 😎
Base pe voltage nahi → transistor OFF 😕
Real example:
Maan lo apke pass:
◼ 🔋 ek 12v battery
◼ ek 12v LED bulb💡
◼ aur 5v control signal ( arduino ya logic ) hai
toh connection aisa haoga:

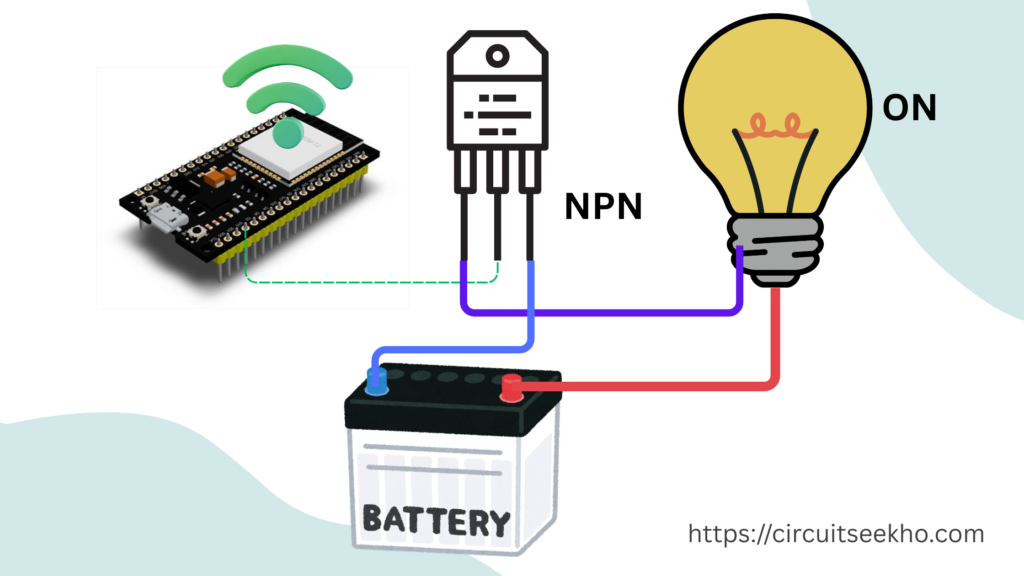

◼ Emitter → GND
◼ Collector → LED ka negative
◼ Base → 5V (resistor ke through)
Jaise hi base pe 5V aata hai , transistor ON ho jata hai aur LED Glow karta hai
ye jo switching hamne sikha isko low-side switching kehte
▪ Ab ham samjhenge PNP transistor kaise kam karta hai
🟢PNP Transistor kaise kaam karta hai?
PNP transistor ka logic NPN ka bilkul ulta hota hai.
PNP ka simple rule:
▪ Base ko GND / negative pe lao → transistor ON😎
▪ Base ko + voltage pe rakho → OFF😕
PNP transistor zyada tar high-side switching ke liye use hota hai,
jahan load ka positive side control karna hota hai.
🔄 NPN vs PNP (Quick Comparison)
Feature NPN PNP
ON kab hota hai Base + PNP –
Switching type Low-side High-side
Beginner ke liye Easy Thoda tricky
⚠️ Base resistor kyun lagate hain?
Base aur Emitter junction ek diode jaisa hota hai, jise sirf ~0.7V chahiye.
Agar aap:
▪ Base pe 5V direct laga dete ho
▪ Zyada current flow ho jata hai
Transistor aur Arduino pin damage ho sakte hain 🔥
✅ Solution:
Base ke saath resistor lagana zaroori hota hai.
Typical value: 1kΩ – 4.7kΩ
5V ──[ 1kΩ ]── Base
👉 Resistor current ko limit karta hai aur circuit ko safe banata hai.
🔋 Kya 5V se 12V LED ya bulb control ho sakta hai?
Haan, bilkul ho sakta hai ✅
Bas ye baatein yaad rakho:
▪ 5V aur 12V ka ground common hona chahiye
▪ Load ka current check karo
▪ Small current → NPN transistor OK
▪ Zyada current → MOSFET better option
Is tarah transistor voltage level ko nahi,
current flow ko control karta hai.
🧠 Final Conclusion
Transistor ek smart electronic switch hai jo chhote signal se bade load ko control karta hai
▪ Manual kaam → simple switch
▪ Automatic / logic control → transistor
Agar aap electronics ke beginner ho,
to NPN transistor se start karna best choice hai.
**Aaj hamne NPN/PNP transistor kaise kaam karta hai vo seekha —
lekin is topic me abhi bhi aur bahut kuch hai janne ko! 📘
about tansistor https://en.wikipedia.org/wiki/Transistor
Agar aapko ye blog kaisa laga, toh comment me zaroor batayein.
Saath hi woh topic bhi batayein jo aapko mushkil laga —
main apna time nikal kar aapka reply dunga. 💬
➤ Agar aap transistor ko multimeter se check kaise karte hain yeh janna chahte hain,
toh niche diye gaye link par click karein.
Main aapke sawalon ka answer detail me dunga,
taaki aap transistor ko confidently samajh aur use kar saken! 🔧🔌**
